Introduction
What This Article Covers
This guide explains exactly what a bottleneck calculator is, how it works, and how to use one to squeeze maximum performance from your hardware - without spending a single dollar unnecessarily.
Is your gaming PC under performing? Whether you are getting unexpectedly low FPS, experiencing stutters mid-game, or wondering whether a new GPU is worth the upgrade - a bottleneck calculator gives you the data-driven answer you need.
A bottleneck calculator is the single most useful free diagnostic tool for any PC builder, gamer, or upgrader. Rather than guessing which component to replace next, it provides a concrete bottleneck percentage that tells you exactly where your system is leaving performance on the table.
What Is a Bottleneck Calculator?

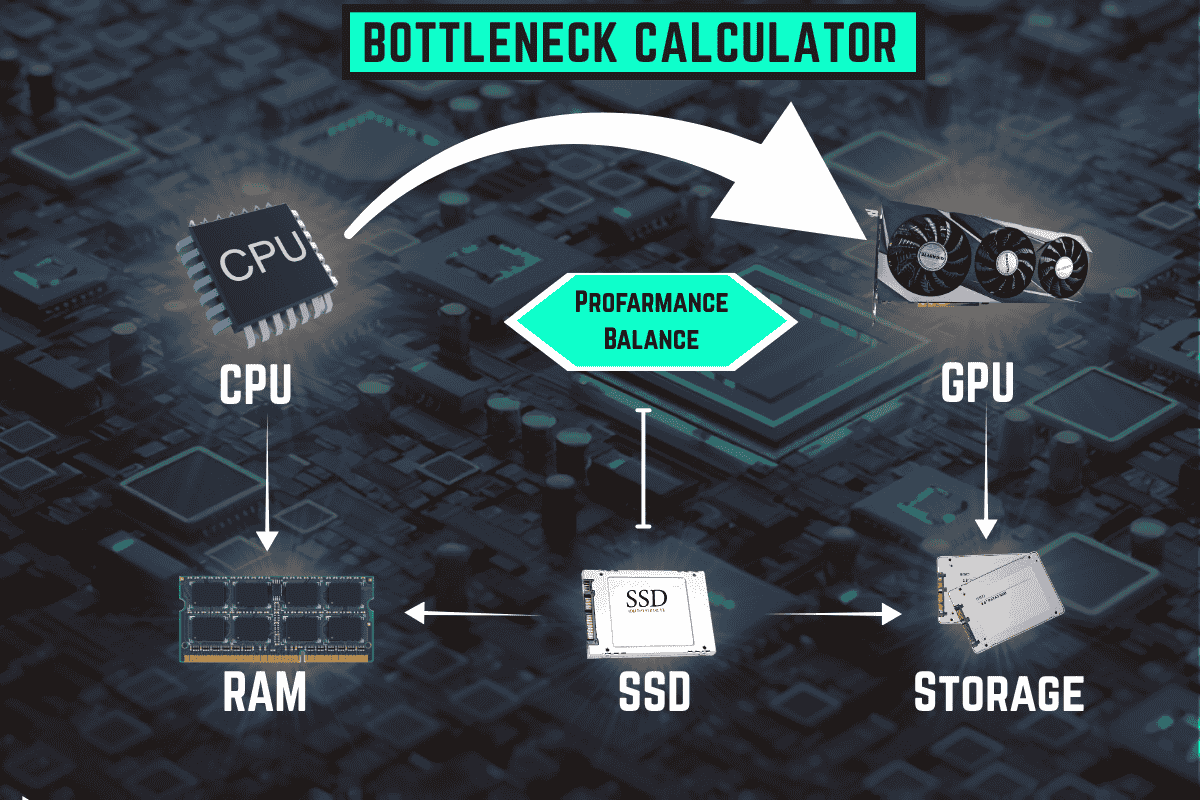

A bottleneck calculator is a diagnostic tool that compares the performance throughput of your PC components - most commonly your CPU and GPU - to determine which one is the limiting factor in your system.
The term bottleneck comes from the shape of a bottle: no matter how fast liquid flows toward the neck, output is restricted by the narrowest point. In computing, the same principle applies. If your processor can render frames 40% faster than your graphics card can display them, your GPU is the bottleneck.
A quality bottleneck calculator takes your exact hardware specifications - CPU model, GPU model, RAM capacity and speed, and screen resolution - and cross-references them against real-world benchmark datasets to give you a reliable bottleneck percentage.
Who Should Use a Bottleneck Calculator?
• Gamers wanting to diagnose why their FPS drops below target
• PC builders planning a balanced new build before purchasing
• Upgraders confirming component compatibility before spending money
• Content creators optimizing workstations for video editing or 3D rendering
How Does a Bottleneck Calculator Work?
Modern bottleneck calculators rely on extensive databases of synthetic and real-world benchmark results. When you enter your hardware, the tool retrieves the performance profile for each component and compares them across a common set of workloads.
The Core Calculation Method
At its simplest, a bottleneck percentage reflects the performance gap between two components when handling the same task. If your CPU scores 100 units on a rendering task and your GPU scores only 70 units, the GPU is the constraining factor - and the bottleneck percentage sits around 30%.
Advanced calculators also factor in:
• Screen resolution - higher resolutions shift workload toward the GPU, while 1080p is more CPU-dependent
• RAM speed and capacity - slower or insufficient RAM can independently create its own bottleneck
• Use-case type - gaming, video editing, 3D rendering, and streaming all stress components in different ratios
• Power limits and thermal throttling - some calculators account for components not running at rated speeds under load
Pro Tip
Always run a bottleneck calculation for your primary use case. A system perfectly balanced for 4K gaming may show a significant CPU bottleneck when used for 1080p competitive gaming at high frame rates - these are two entirely different performance profiles.
Types of PC Bottlenecks Explained
Not all bottlenecks are created equal. Understanding the different types helps you zero in on the right solution without unnecessary spending.
CPU Bottleneck
A CPU bottleneck occurs when your processor cannot supply frames or data to the GPU fast enough. This is most common at lower resolutions (720p or 1080p) with a powerful GPU, or in games with dense AI, open-world physics, or many simultaneous calculations. Symptoms include your GPU sitting below 90-95% utilization while your CPU cores are maxed out.
GPU Bottleneck
A GPU bottleneck is the most common scenario and is often considered acceptable - it means your graphics card is the hardest-working component, which is exactly how most gaming systems should be configured. At 4K resolution, even the most powerful CPUs will typically produce a mild GPU bottleneck, since the GPU must process vastly more pixels per frame.
RAM Bottleneck
Insufficient RAM capacity (below 16 GB for modern gaming) or slow memory speeds can create a third type of bottleneck that neither a CPU nor GPU upgrade will solve. Dual-channel memory configuration and DDR5 speeds have become important variables in high-performance builds.
Storage Bottleneck
A spinning hard drive (HDD) can severely bottleneck load times, streaming open-world textures, and application launch speeds. Upgrading to an NVMe SSD removes this bottleneck entirely and is one of the most impactful single upgrades available for aging systems.
How to Use a Bottleneck Calculator (Step by Step)
Follow these six steps to get accurate and actionable results from any bottleneck calculator:
1. Identify Your Components - Open Task Manager or System Information to find your exact CPU model, GPU model, and installed RAM. Write down the full names including model numbers.
2. Choose Your Target Resolution - Select the resolution you actually game or work at. Using the wrong resolution will give misleading results. Options: 1080p, 1440p, or 4K.
3. Enter Your Hardware Into the Calculator - Use the dropdown menus to select your CPU and GPU from the database. Better tools will also ask for RAM speed and capacity.
4. Select Your Use Case - Many advanced bottleneck calculators let you toggle between Gaming, Video Editing, Streaming, or General Use. Choose the one that matches your primary workload.
5. Interpret Your Bottleneck Percentage - Review the output score. Under 10% is excellent. Between 10-20% is acceptable. Over 20% suggests a meaningful imbalance worth addressing.
6. Cross-Reference With Real-World Monitoring - Validate calculator results using MSI Afterburner or HWiNFO64 during actual gameplay for the most accurate picture.
Understanding Bottleneck Percentage Readings
The percentage output from a bottleneck calculator is the most actionable piece of data it delivers. Here is how to decode the numbers and what action - if any - they recommend.
Bottleneck %
Severity
What It Means
Recommended Action
0 - 9%
Excellent
Components are well-matched. Your system is running efficiently.
No action needed. Focus on software optimization.
10 - 19%
Acceptable
Minor imbalance. Small performance left on the table.
Overclock the weaker component or lower settings.
20 - 30%
Moderate
Noticeable performance loss, especially at peak demand.
Plan a component upgrade within 6-12 months.
30 - 50%
Severe
Significant performance being lost. Component mismatch is substantial.
Prioritize upgrading the bottlenecking component soon.
50%+
Critical
One component is severely holding the other back. Major FPS/performance loss.
Upgrade immediately - you are paying for hardware you cannot use.
Important Note
A small GPU bottleneck (under 10%) is actually the ideal scenario for a gaming PC. It means your GPU - the most expensive component - is the hardest-working part of your system. A CPU bottleneck of any meaningful size, however, is almost always worth addressing because it impacts frame times, input latency, and consistency across all applications.
How to Fix Common Bottlenecks
Fixing a CPU Bottleneck
• Increase resolution or enable ray tracing - Shifts more work to the GPU at zero hardware cost
• Enable XMP/EXPO in BIOS - Running RAM at its rated speed can boost CPU-bound performance by 5-15%
• Overclock your CPU - On unlocked Intel K or AMD X chips, even modest 10-15% overclocks help significantly
• Upgrade your CPU - A same-socket CPU upgrade offers major gains without a full platform change
Fixing a GPU Bottleneck
• Lower graphics settings - Reducing resolution scale or shadow quality quickly eliminates a GPU bottleneck at no cost
• Upgrade your GPU - The most direct solution when paired with a capable CPU
• Use DLSS, FSR, or XeSS - AI upscaling technologies dramatically reduce GPU workload while maintaining visual quality
Fixing a RAM Bottleneck
• Add more RAM - Upgrade from 8 GB to 16 GB, or 16 GB to 32 GB for RAM-intensive workflows
• Enable dual-channel mode - Ensure your sticks are in the correct slots (usually A2 and B2)
• Enable XMP/EXPO - This single BIOS change unlocks the full rated speed of your RAM sticks at no cost
Frequently Asked Questions
What is a good bottleneck percentage for gaming?
For gaming, a bottleneck percentage under 10% is considered excellent. Between 10-20% is acceptable and unlikely to cause noticeable issues. Anything above 20% represents a meaningful imbalance worth addressing, particularly if you are experiencing frame rate instability in your monitoring tools.
Are bottleneck calculators accurate?
Bottleneck calculators are useful planning and diagnostic tools, but they are estimates based on benchmark averages - not a direct measurement of your specific system. For the most accurate results, combine a bottleneck calculator with real-time monitoring software like MSI Afterburner during actual gameplay. They are especially reliable for identifying large imbalances above 20%.
Is a CPU or GPU bottleneck worse?
A CPU bottleneck is generally considered more problematic because it affects not just raw FPS but also frame time consistency, input latency, and performance across all tasks. A mild GPU bottleneck under 10% is actually the intended configuration for a gaming PC. A CPU bottleneck, however, creates uneven frame delivery that can make games feel choppy even when average FPS looks acceptable.
Does RAM speed affect bottleneck calculations?
Yes, significantly - especially for AMD Ryzen processors, which share memory bandwidth between the CPU and integrated graphics controller via the Infinity Fabric. Running RAM below its rated XMP/EXPO speed can independently create a measurable bottleneck. Always enter your actual operating memory frequency, not the rated specification on the packaging.
How do I check for a bottleneck without a calculator?
Install MSI Afterburner with the RivaTuner Statistics Server overlay to monitor real-time GPU and CPU utilization during gameplay. If your GPU utilization is consistently below 90-95% while your CPU cores are running at or near 100%, you have a CPU bottleneck. If your GPU is pegged at 99% while the CPU sits below 70%, the GPU is the limiting factor - which is typically the ideal scenario.
Conclusion
A bottleneck calculator is one of the most powerful free tools available to any PC enthusiast. Rather than throwing money at an upgrade that might not improve real-world performance, it arms you with precise data about where your system is being held back.
Whether you are diagnosing an existing build, planning a new one, or deciding between a CPU and GPU upgrade, a bottleneck calculator transforms guesswork into a confident, data-driven decision. Pair the calculator results with real-time monitoring, and you have everything you need to optimize your PC performance without overspending.
